Scat 4340 Steel H-Beam
Rods
|
Chevrolet, Ford, Chrysler, AMC, Buick, Cadillac, Holden, Big
Block Pontiac, Vauxhall, VW |
RPM - RON'S PRECISION MACHINE, INC.
69 E. 580 N.
Santaquin, Utah 84655
|
Contact us
anytime OR by using your e-mail program and type
in or copy & paste ron@rpmrons.com to send an e-mail with
what you need. |
Order Form
Home
PRO SPORT H-BEAMS Connecting Rod
• Perfect for high horsepower, supercharged
and
nitrous applications
• Double rib cap design for added
strength and bearing support
• Polished and shot peened beams to
eliminate stress risers
• Special hollow-doweled cap for specific
cap-to-rod alignment
• Comes standard 7/16” ARP cap
screw bolts
• ARP2000 bolt upgrade available

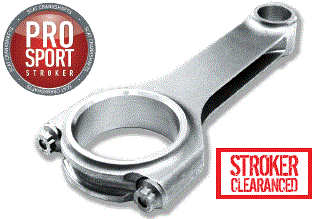

PRO SPORT STROKER H-BEAM Connecting Rod -
• Perfect for high horsepower, supercharged
and nitrous applications
• Cut for cam clearance on longer
stroker
• Double rib cap design for added
strength and bearing support
• Polished and shot peened beams to
eliminate stress risers
• Special hollow doweled cap for accurate
cap-to-rod beam alignment
• Comes standard 7/16” ARP Cap
Screw Bolts

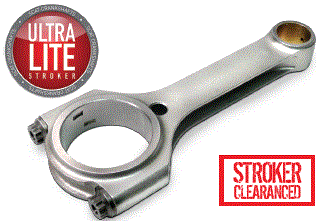

PRO SPORT ULTRA LITE STROKER H-BEAMS
Connecting Rod
• SCAT’s exclusive Ultra Lite
connecting rod
with newly designed beam for added strength
• Cut for cam clearance on longer
stroker
• Double rib cap design for added
strength and bearing support
• Polished and shot peened beams to
eliminate stress risers
• Special hollow doweled cap for accurate
cap-to-rod beam alignment
• Formula 1 inspired lightening hole
for Ultra Lite weight reduction
• Comes standard 7/16” ARP Cap
Screw Bolts
• ARP2000 bolt upgrade available
PREMIUM PRO SPORT 4340 FORGED
H BEAMS
CONNECING RODS
Page 9
CHEVY - LS - 6-CYLINDER
MAXIMUM
STRENGTH
MAXIMUM
PERFORMANCE
FEATURES & BENEFITS
• Perfect for high horsepower,
supercharged and
nitrous applications
• Double rib cap design for added
strength
and bearing support
• Polished and shot peened beams to
eliminate
stress risers
• Special hollow doweled cap for accurate
capto-
rod beam alignment
• Comes standard 7/16” ARP Cap
Screw Bolts
• ARP2000 bolt upgrade available
|
PART NO. |
Desc. |
PART NO. |
Rod Leng. |
Crank Pin |
Wrist Pin |
B.E. Width |
|
CHEVY SMALL BLOCK |
|
6570020 $956.95 |
Bushed |
6570020A $1,048.75 1,048.75 |
5.700 |
2.000 |
.927 |
.940 |
|
6570021 $859.87 |
Bushed |
6570021A $962.40 962.40 |
5.700 |
2.100 |
.927 |
.940 |
|
6580020 |
Bushed |
6580020A |
5.850 |
2.000 |
.866 |
.940 |
|
6585021 $956.95 |
Bushed |
6585021A $1,048.75 1,048.75 |
5.850 |
2.100 |
.927 |
.940 |
|
6600020 $956.95 |
Bushed |
6600020A $1,048.75 1,048.75 |
6.000 |
2.000 |
.927 |
.940 |
|
6600021 $865.15 |
Bushed |
6600021A $962.40 962.40 |
6.000 |
2.100 |
.927 |
.940 |
|
6612520 $956.95 |
Bushed |
6612520A $1,048.75 1,048.75 |
6.125 |
2.000 |
.927 |
.940 |
|
6612521 $956.95 |
Bushed |
6612521A $1,048.75 1,048.75 |
6.125 |
2.100 |
.927 |
.940 |
|
6620020 $956.95 |
Bushed |
6620020A $1,048.75 1,048.75 |
6.200 |
2.000 |
.927 |
.940 |
|
6620021 $956.95 |
Bushed |
6620021A $1,048.75 1,048.75 |
6.200 |
2.100 |
.927 |
.940 |
|
6625021 $956.95 |
Bushed |
6625021A $1,048.75 1,048.75 |
6.250 |
2.100 |
.927 |
.940 |
|
ARP 8740 7/16" Cap Screws |
ARP 2000 7/16" Cap Screws |
|
CHEVY 6-CYLINDER |
|
66000206 $865.15 |
Bushed |
66000206A $954.30 954.30 954.30 |
6.000 |
2.000 |
.927 |
1.030 |
|
ARP 8740 7/16" Cap Screws |
ARP 2000 7/16" Cap Screws |
|
CHEVY BIG BLOCK |
|
6613522 $963.72 |
Bushed |
6613522A $1,052.88 1,052.88 |
6.135 |
2.200 |
.990 |
.992 |
|
6638522 $958.43 |
Bushed |
6638522A $1,043.47 1,043.47 |
6.385 |
2.200 |
.990 |
.992 |
|
6653522 $963.72 |
Bushed |
6653522A $1,052.88 1,052.88 |
6.535 |
2.200 |
.990 |
.992 |
|
6670022 $963.72 |
Bushed |
6670022A $1,052.88 1,052.88 |
6.700 |
2.200 |
.990 |
.992 |
|
6680022 $963.72 |
Bushed |
6680022A $1,052.88 1,052.88 |
6.800 |
2.200 |
.990 |
.992 |
|
6710022 $963.72 |
Bushed |
6710022A $1,052.88 1,052.88 |
7.100 |
2.200 |
.990 |
.992 |
|
ARP 8740 7/16" Cap Screws |
ARP 2000 7/16" Cap Screws |
|
CHEVY LS1 |
|
66100927 $1,002.85 |
Bushed |
66100927A $1,085.24 1,085.24 |
6.100 |
2.100 |
.927 |
.940 |
|
66100945 $1,008.30 |
Bushed |
66100945A $1,097.46 1,097.46 |
6.100 |
2.100 |
.945 |
.940 |
|
ARP 8740 7/16" Cap Screws |
ARP 2000 7/16" Cap Screws |
Page 10
FORD CONNECTING RODS
PREMIUM PRO SPORT 4340 FORGED H-BEAMS
CONNECTING RODS
|
PART NO. |
DESC. |
PART NO. |
Rod Leng. |
Crank Pin |
Wrist Pin |
B.E. Width |
|
FORD SMALL BLOCK 302 |
|
65090 $916.50 |
Bushed |
65090A $1,008.30 1,008.30 |
5.090 |
2.123 |
.912 |
.830 |
|
6540092720 $1,015.07 |
Bushed |
6540092720A $1,105.54 1,105.54 |
5.400 |
2.000 |
.927 |
.830 |
|
6540092721 $890.91 |
Bushed |
6540092721A $979.97 979.97 |
5.400 |
2.100 |
.927 |
.830 |
|
65400912 $956.95 |
Bushed |
65400912A $1,048.75 1,048.75 |
5.400 |
2.123 |
.912 |
.830 |
|
65400927 $890.91 |
Bushed |
65400927A $979.97 979.97 |
5.400 |
2.123 |
.927 |
.830 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
FORD SMALL BLOCK 351 |
|
65955 $956.95 |
Bushed |
65955A $1,048.75 1,048.75 |
5.955 |
2.311 |
.912 |
.830 |
|
66125 $956.95 |
Bushed |
66125A $1,048.75 1,048.75 |
6.125 |
2.311 |
.912 |
.830 |
|
66200 $956.95 |
Bushed |
66200A $1,048.75 1,048.75 |
6.200 |
2.311 |
.927 |
.830 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
FORD FLATHEAD |
|
6700 $1,024.47 |
Bushed |
6700A $1,114.95 1,114.95 |
7.000 |
2.000 |
.750 |
.865 |
|
670021 $1,024.47 |
Bushed, Use Stock Bearing |
. |
7.000 |
2.138 |
.750 |
.865 |
|
ARP 8740 3/8" CAP SCREWS |
ARP 2000 3/8" CAP SCREWS |
|
FORD MODEL A & MODEL T |
|
675015 $773.42 |
Bushed, Model A |
. |
7.500 |
1.500 |
1.000 |
1.625 |
|
ARP 8740 7/16" CAP SCREWS |
|
675020 $773.35 |
Bushed, Model T |
. |
6.875 |
1.500 |
.750 |
1.625 |
|
2T700 $776.16 |
Bushed, Model T |
7.000 |
1.250 |
.740 |
1.500 |
NW |
|
ARP 8740 3/8" CAP SCREWS |
|
. |
|
FORD BIG BLOCK 460 & FE |
|
66490 $1,024.47 |
Bushed |
66490A $1,114.95 1,114.95 |
6.490 |
2.438 |
.975 |
.875 |
|
66605 $1,024.47 |
Bushed |
66605A $1,114.95 1,114.95 |
6.605 |
2.500 |
1.040 |
.995 |
|
ARP 8740 7/16" CAP SCREWS . |
ARP 2000 7/16" CAP SCREWS |
|
FORD MODULAR STOCK 4.6L / 5.4L |
|
6593346 $1,020.52 |
Bushed 4.6L |
6593346A $1,111.00 1,111.00 |
5.933 |
2.086 |
.866 |
.940 |
|
6665754 $1,024.47 |
Bushed 5.4L |
6665754A $1,114.95 1,114.95 |
6.657 |
2.086 |
.866 |
.940 |
|
ARP 8740 3/8" CAP SCREWS |
ARP 2000 3/8" CAP SCREWS |
|
FORD MODULAR STROKER 4.6L |
|
6585028 $1,020.52 |
Bushed |
6585028A $1,111.00 1,111.00 |
5.850 |
2.000 |
.866 |
.940 |
|
• ARP 8740 7/16” CAP SCREWS
. |
• ARP 2000 7/16” CAP SCREWS |
|
FORD FORMULA 1600 |
|
64925635 $662.73 |
Bushed, 635 Grams |
. |
4.925 |
2.082 |
.812 |
1.056” |
|
• ARP 2000 3/8” CAP SCREWS |
|
FORD STRAIGHT 6 CYL. TURBO |
|
66059020 $902.96 |
. |
6.059 |
2.242 |
.933 |
.867 |
|
• ARP 2000 3/8” CAP SCREWS |
. |
Page 11
PREMIUM PRO SPORT 4340 FORGED H-BEAMS
CONNECTING RODS
Rod Leng.
|
Part No. |
Desc. |
Part No. |
Rod Leng. |
Crank Pin |
Wrist Pin |
B.E. Width |
|
CHRYSLER SMALL BLOCK |
|
66123 $959.76 |
Bushed |
66123A $1,051.56 1,051.56 |
6.123 |
2.124 |
.984 |
.925 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
CHRYSLER BIG BLOCK 426 / 440 |
|
66858 $948.86 |
Bushed, 426 |
66858A $1,042.15 1,042.15 |
6.800 |
2.200 |
.990 |
1.012 |
|
66860 $959.76 |
Bushed, 426 |
66860A $1,052.88 1,052.88 |
6.860 |
2.374 |
1.030 |
1.012 |
|
6676010 $959.76 |
Bushed, 440 |
6676010A $1,052.88 1,052.88 |
6.760 |
2.374 |
1.094 |
1.012 |
|
6676099 $959.76 |
Bushed, 440 |
6676099A $1,052.88 1,052.88 |
6.760 |
2.374 |
.990 |
1.012 |
|
6671099 $959.76 |
Bushed, 440 |
6671099A $1,052.88 1,052.88 |
7.100 |
2.374 |
.990 |
1.012 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
AMC |
|
65885 $1,027.28 |
Bushed |
65885A $1,116.27 1,116.27 |
5.885 |
2.095 |
.930 |
.924 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
BUICK |
|
6385970 $836.92 836.92 |
Bushed |
6385970A $928.72 928.72 |
5.970 |
2.249 |
.940 |
.844 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
HOLDEN |
|
65627 $948.98 |
Bushed |
65627A $1,038.02 1,038.02 |
5.627 |
2.124 |
.927 |
.880 |
|
65727 $948.98 |
Bushed |
65727A $1,038.02 1,038.02 |
5.700 |
2.124 |
.927 |
.880 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
OLDSMOBILE |
|
66735O $1,039.34 |
Bushed |
66735OA $1,131.14 1,131.14 |
6.735 |
2.500 |
0.980 |
0.930 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
|
PONTIAC BIG BLOCK |
|
66625 $1,051.56 |
Bushed |
66625A $1,142.03 1,142.03 |
6.625 |
2.249 |
.980 |
.995 |
|
66625P $1,023.15 |
Pressed |
66625PA $1,116.27 1,116.27 |
6.625 |
2.249 |
.980 |
.995 |
|
ARP 8740 7/16" CAP SCREWS . |
ARP 2000 7/16" CAP SCREWS |
|
VAUXHALL |
|
6VAUX $683.03 683.03 |
Bushed |
. |
5.636 |
1.927 |
.827 |
1.039 |
|
ARP 2000 3/8" CAP SCREWS |
CHEVY Q-LITE 4340 H-BEAMS
|
Part No. |
Desc. |
Rod Leng. |
Crank Pin |
Wrist Pin |
B.E. Width |
Wht.* |
|
65700214 $1,023.15 |
Bushed |
5.700 |
2.100 |
.927 |
.940 |
581 |
|
66000214 $1,023.15 |
Bushed |
6.000 |
2.100 |
.927 |
.940 |
581 |
|
ARP 2000 3/8" CAP SCREWS |
(*) Weights (grams) are approximate, actuals may vary.
Page 12
CHEVY PRO SPORT 4340 STROKER H-BEAMS
CONNECTING RODS
FEATURES & BENEFITS
• Perfect for high horsepower,
supercharged and nitrous
applications
• Double rib cap design for
added strength and
bearing support
• Special hollow doweled cap
for accurate cap-to-rod beam
alignment
• Polished and shot peened
beams to eliminate stress risers
• Comes standard 7/16”
ARP Cap Screw Bolts
• ARP2000 bolt upgrade available
|
PART NO. |
DESC. |
PART NO. |
Rod Leng. |
Crank Pin |
Wrist Pin |
B.E. Width |
Wht. |
|
6600021S $1,027.28 |
Bushed |
6600021SA $1,116.27 1,116.27 |
6.000 |
2.100 |
.927 |
.940 |
616 |
|
6612521S $1,027.28 |
Bushed |
6612521SA $1,116.27 1,116.27 |
6.125 |
2.100 |
.927 |
.940 |
616 |
|
6625021S $1,027.28 |
Bushed |
6625021SA $1,116.27 1,116.27 |
6.250 |
2.100 |
.927 |
.940 |
616 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
CHEVY PRO SPORT ULTRA LITE 4340
STROKER H-BEAMS CONNECTING RODS
FEATURES & BENEFITS
• SCAT’s exclusive Ultra
Lite connecting rod with newly
designed beam for added strength
• Double rib cap design for added strength and bearing
support
• Polished and shot peened beams to eliminate stress risers
• Special hollow doweled cap for accurate cap-to-rod beam
alignment
• Formula 1 inspired lightening hole for Ultra Lite weight
reduction
• Comes standard 7/16” ARP Cap Screw Bolts
• ARP2000 bolt upgrade available
|
PART NO. |
DESC. |
PART NO. |
Rod Leng. |
Crank Pin |
Wrist Pin |
B.E. Width |
Wht.* |
|
6585020QLS $1,067.74 |
Bushed |
6585020QLSA $1,156.90 1,156.90 |
5.850 |
2.000 |
.927 |
.940 |
569 |
|
6585021QLS $1,062.29 |
Bushed |
6585021QLSA $1,151.44 1,151.44 |
5.850 |
2.100 |
.927 |
.940 |
569 |
|
6570020QLS $1,067.74 |
Bushed |
6570020QLSA $1,156.90 1,156.90 |
5.700 |
2.000 |
.927 |
.940 |
569 |
|
6570021QLS $1,055.52 |
Bushed |
6570021QLSA $1,144.68 1,144.68 |
5.700 |
2.100 |
.927 |
.940 |
569 |
|
6600018QLS $1,067.74 |
Bushed |
6600018QLSA $1,156.90 1,156.90 |
6.000 |
1.888 |
.927 |
.940 |
569 |
|
6600020QLS $1,067.74 |
Bushed |
6600020QLSA $1,156.90 1,156.90 |
6.000 |
2.000 |
.927 |
.940 |
569 |
|
6600021QLS $1,067.74 |
Bushed |
6600021QLSA $1,156.90 1,156.90 |
6.000 |
2.100 |
.927 |
.940 |
569 |
|
6600021QLS $1,067.74 |
Bushed |
6600021QLSA $1,156.90 1,156.90 |
6.000 |
2.100 |
.927 |
.940 |
569 |
|
6612520QLS $1,067.74 |
Bushed |
6612520QLSA $1,156.90 1,156.90 |
6.125 |
2.000 |
.927 |
.940 |
569 |
|
6612521QLS $1,067.74 |
Bushed |
6612521QLSA $1,156.90 1,156.90 |
6.125 |
2.100 |
.927 |
.940 |
569 |
|
ARP 8740 7/16" CAP SCREWS |
ARP 2000 7/16" CAP SCREWS |
(*) Weights (grams) are approximate, actuals may vary.
Page 13
ACCESSORIES
|
PART NO. |
DESC. |
|
ARP BOLTS |
|
AR304-1WB $14.67 14.67 |
1 Pc 3/8" Wave-Loc 8740 Bolt |
|
4AJ1.601-1SLU $22.77 |
1 Pc 3/8" X 1.600 8740 Bolt |
|
4AJ1.601-2SLU $22.95 |
1 Pc 3/8" X 1.600 2000 Bolt |
|
4AP1.400-1LU $22.77 |
1 Pc 7/16" X 1.400 8740 Bolt |
|
4AP1.450-2LU $22.95 |
1 Pc 7/16" X 1.450 2000 Bolt |
|
4AP1.602-1LU $22.77 |
1 Pc 7/16" X 1.600 8740 Bolt |
|
4AP1.602-2LU $22.95 |
1 Pc 7/16" X 1.600 2000 Bolt |
|
4AP1.801-1LU $22.77 |
1 Pc 7/16" X 1.800 8740 Bolt |
|
4AP1.801-2U |
1 Pc 7/16" X 1.800 2000 Bolt |
|
4AP1.601.65LU |
1 Pc 7/16" X 1.600 L19 Bolt |
|
ROD CAP ALIGNMENT SLEEVES |
|
S3750 $14.67 14.67 |
1 Pc For 3/8" Bolt - I Beam Rods |
|
S4375 $14.67 14.67 |
1 Pc For 7/16" Bolt - I & H Beam Rods |
|
Wrist Pin BUSHINGS |
|
B750 $14.67 |
1 Pc .750 , Flathead |
B927 $14.67 14.67 14.67 |
1 Pc .927, SB Ford & Chevy |
|
B787 $14.67 |
1 Pc .787 , VW, Scirocco |
B984 $14.67 14.67 14.67 |
1 PC .984 SB CHRYSLER |
|
B827 $14.67 |
1 Pc .827, VW, Honda |
B990 $14.67 14.67 14.67 |
1 PC .990 BB CHEVY |
|
B866 $14.67 |
1 Pc .866, VW, Honda |
B1030 $14.67 14.67 14.67 |
1 PC 1.030 BB CHRYSLER |
|
B912 $14.67 |
1 Pc .912, Ford |
B1094 $14.67 14.67 14.67 |
1 PC 1.094 BB CHRYSLER |
ARP MOLY LUBE
|
B750 $14.67 |
1 Pc .750 , Flathead |
B927 $14.67 14.67 14.67 |
1 Pc .927, SB Ford & Chevy |
|
B787 $14.67 |
1 Pc .787 , VW, Scirocco |
B984 $14.67 14.67 14.67 |
1 PC .984 SB CHRYSLER |
|
B827 $14.67 |
1 Pc .827, VW, Honda |
B990 $14.67 14.67 14.67 |
1 PC .990 BB CHEVY |
|
B866 $14.67 |
1 Pc .866, VW, Honda |
B1030 $14.67 14.67 14.67 |
1 PC 1.030 BB CHRYSLER |
|
B912 $14.67 |
1 Pc .912, Ford |
B1094 $14.67 14.67 14.67 |
1 PC 1.094 BB CHRYSLER |

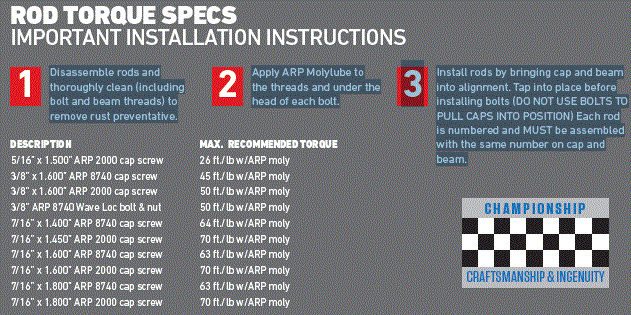

ROD TORQUE SPECS.
IMPORTANT INSTALLATION INSTRUCTIONS
DESCRIPTION MAX. RECOMMENDED TORQUE
5/16” x 1.500” ARP 2000 cap screw 26 ft./lb w/ARP moly
3/8” x 1.600” ARP 8740 cap screw 45 ft./lb w/ARP moly
3/8” x 1.600” ARP 2000 cap screw 50 ft./lb w/ARP moly
3/8” ARP 8740 Wave Loc bolt & nut 50 ft./lb w/ARP moly
7/16” x 1.400” ARP 8740 cap screw 64 ft./lb w/ARP moly
7/16” x 1.450” ARP 2000 cap screw 70 ft./lb w/ARP moly
7/16” x 1.600” ARP 8740 cap screw 63 ft./lb w/ARP moly
7/16” x 1.600” ARP 2000 cap screw 70 ft./lb w/ARP moly
7/16” x 1.800” ARP 8740 cap screw 63 ft./lb w/ARP moly
7/16” x 1.800” ARP 2000 cap screw 70 ft./lb w/ARP moly
PRO SPORT H-BEAMS CONNECTING RODS
|
Perfect for high horsepower, supercharged and nitrous Applications H-Beam design is the strongest
SCAT rod available Special doweled cap for specific cap-to-rod
alignment Available for AMC, Buick, Chevy, Chrysler, Ford, Holden,
Pontiac, Vauxhall, VW |
SPORT COMPACT
Page 76
|

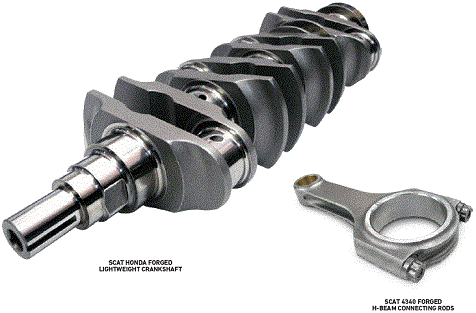

HONDA CRANKSHAFTS & CONNECTING RODS |
|
PART No. |
Engine |
STROKE
INCH/ MM |
Wht.
(**) |
TECH NOTES |
|
HONDA 4340 FORGED STANDARD WEIGHT CRANKSHAFTS |
|
4H891 |
4-Cylinder |
3.504/ 89mm |
33 lbs |
1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width |
|
4H921 |
4-Cylinder |
3.622/ 92mm |
33 lbs |
1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width |
|
HONDA 4340 FORGED LIGHTWEIGHT PRO COMP CRANKSHAFTS |
|
4H891-2 $1,943.87 |
4-Cylinder |
3.504/ 89mm |
29 lbs |
1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width |
|
4H921-2 |
4-Cylinder |
3.622/ 92mm |
29 lbs |
1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width |
|
HONDA 4340 BILLET LIGHTWEIGHT PRO COMP CRANKSHAFTS |
|
88H951-2 |
4-Cylinder |
3.740/ 95mm |
29 lbs |
1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width |
(**) Weights (lbs) are approximate, actuals may vary.
|
HONDA 4340
FORGED H-BEAM CONNECTING RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65290198 $645.22 |
B16A DOHC VTEC 4-Cylinder |
5.290/ 134mm |
1.771/ 45mm |
.935/ 24mm |
.827/ 21mm |
|
65394187 $645.22 |
D16 SOHC VTEC 4-Cylinder |
5.394/ 137mm |
1.771/ 45mm |
.898/ 23mm |
.748/ 19mm |
|
65394198 $645.22 |
B18A DOHC VTEC 4-Cylinder |
5.394/ 137mm |
1.771/ 45mm |
.935/ 24mm |
.827/ 21mm |
|
65430187 $645.22 |
GSR, B18C1 4-Cylinder |
5.430/ 138mm |
1.771/ 45mm |
.858/ 22mm |
.827/ 21mm |
|
65458187 $645.22 |
DI6, VITARA PISTON 4-Cylinder |
5.458/ 139mm |
1.771/ 45mm |
.898/ 23mm |
.748/ 19mm |
|
65472178 $645.22 |
K20A2 VTEC 4-Cylinder |
5.472/ 139mm |
1.888/ 48mm |
.780/ 20mm |
.866/ 22mm |
|
65984187 $645.22 |
K24 4-Cylinder |
5.984/ 152mm |
1.889/ 48mm |
.833/ 21mm |
.866/ 22mm |
|
65485188 $635.65 |
GSR 1.055 4-Cylinder |
5.485/ 139mm |
1.771/ 48mm |
.858/ 22mm |
.827/ 21mm |
|
65630198 $645.22 |
H22 VTEC A1 LONG 4-Cylinder |
5.630/ 143mm |
1.890/ 48mm |
.935/ 24mm |
.866/ 22mm |
|
65893199 $645.22 |
F22C, DOHC 4-Cylinder |
5.893/ 149mm |
1.888/ 48mm |
.940/ 24mm |
.905/ 23mm |
Page 77
SUBARU & MITSUBISHI CRANKSHAFTS &
CONNECTING RODS
|
PART NO. |
Engine |
Stroke Inch/mm |
Pin Dia. Inch/mm |
SUBARU BILLET 4340 LIGHTWEIGHT CRANKSHAFTS
 |
|
88S791 |
EJ20/EJ25 |
3.110/ 79mm |
2.047/ 52mm |
|
88S831 $2,398.84 |
EJ20/EJ25 |
3.268/ 83mm |
2.047/ 52mm |
SUBARU EJ25 CONNECTING ROD
 |
|
PART NO. |
Engine |
Rod Length Inch/mm |
B.E. Inch/mm |
WRIST Inch/mm |
|
SUBARU FORGED 4340 H-BEAM CONNECTING RODS |
|
65138289 $673.46 |
WRX 2.00, 2.0, 2.50 |
4-Cylinder |
5.138/ 130mm |
.842/ 21mm |
.905/ 23mm |
|
• ARP 2000 3/8" CAP SCREWS |
|
65180289 |
WRX 2.5, 20000 & LATER 2.5 |
4-Cylinder |
5.180/ 132mm |
.842/ 21mm |
.905/ 23mm |
|
• ARP 2000 5/16" CAP SCREWS |
|
PART NO. |
Engine |
Stroke Inch/mm |
Pin Dia. Inch/mm |
TECH NOTES |
|
|
|
|
|
|
MITSUBISHI BILLET 4340 LIGHTWEIGHT CRANKSHAFTS
 |
|
88M941 |
4G63/4G64 |
3.700/94mm |
1.771/45mm |
7 Bolt Flange |
|
88M101 |
4G63/4G64 |
3.937/100mm |
1.771/45mm |
7 Bolt Flange |
|

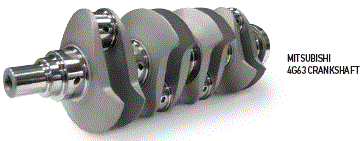

MITSUBISHI 4G63 CRANKSHAFT |
|
PART NO. |
Engine |
Rod Length Inch/mm |
CRANK Inch/mm |
B.E. Inch/mm |
WRIST Inch/mm |
|
MITSUBISHI FORGED 4340 H-BEAM CONNECTING RODS |
|
659061182 $639.78 |
4G63B, Early |
5.906/ 150mm |
1.771/ 45mm |
1.115/ 28mm |
.827/ 21mm |
|
659061186 $645.22 |
4G63B, Late |
5.906/ 150mm |
1.771/ 45mm |
1.038/ 26mm |
.866/ 22mm |
|
• ARP 2000 3/8" CAP SCREWS |
Page 78
|
AUDI/VW FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
66457277 $874.72 |
VR6-3.8L 6-Cylinder |
6.457/ 164mm |
2.125/ 54mm |
.786/ 20mm |
.787/ 20mm |
|
65670747 $673.46 |
1.8T / 2.0T 06A & 06B* 4-Cylinder |
5.670/ 164mm |
1.992/ 54mm |
.980/ 20mm |
.747/ 19mm |
ARP 2000 3/8” Cap Screws
|
COSWORTH FORGED 4340 H-BEAM CONNECTING
RODS |
|
PART NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
64925635 $662.73 |
1600CC FORD. 635 GRAMS 4-Cylinder |
4.925/ 125mm |
2.082/ 53mm |
1.050/ 27mm |
.812/ 21mm |
ARP 2000 3/8” Cap Screws
|
FIAT FORGED 4340 H-BEAM CONNECTING
RODS |
|
PART NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65050118 $673.46 |
PUNTO, GT 4-Cylinder |
5.050/ 128mm |
1.915/ 49mm |
1.000/ 25mm |
.866/ 22mm |
ARP 2000 3/8” Cap Screws
|
FORD FORGED 4340 H-BEAM CONNECTING
RODS |
|
PART NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
64925635 $662.73 |
1600, 4340 4-Cylinder |
4.925/ 128mm |
2.082/ 49mm |
.812/ 25mm |
.635/ 22mm |
ARP 2000 3/8” Cap Screws
|
MAZDA FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65233178 $645.22 |
1.6L & 1.8L B6/BP 4-Cylinder |
5.233/ 133mm |
1.770/ 45mm |
.860/ 22mm . |
787/ 20mm |
ARP 2000 3/8” Cap Screws
|
NISSAN FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65365188 $639.78 |
SR20DE 4-Cylinder |
5.365/ 136mm |
1.888/ 48mm |
.898/ 23mm |
.866/ 22mm |
|
65677288 $880.13 880.13 |
VQ35DE-350ZX- MAXIMA 6-Cylinder |
5.677/ 144mm |
2.047/ 52mm |
.817/ 21mm |
.866/ 22mm |
|
66071188 $880.13 |
VG30-300ZX-V7 6-Cylinder |
6.071/ 154mm |
1.967/ 50mm |
.817/ 21mm |
.866/ 22mm |
|
64783188 $888.17 |
RB26 6-Cylinder |
4.783/ 121mm |
1.889/ 48mm |
.857/ 22mm |
.827/ 21mm |
|
66002826 $645.22 |
Z20 4-Cylinder |
6.002/ 152mm |
2.086/ 53mm |
.860/ 22mm |
.827/ 21mm |
|
66002826S $880.13 880.13 |
RB30 6-Cylinder |
6.002/ 152mm |
2.086/ 53mm |
.860/ 22mm |
.827/ 21mm |
|
66496189 $639.78 |
KA24 4-Cylinder |
6.496/ 165mm |
1.967/ 48mm |
.973/ 25mm |
.827/ 21mm |
ARP 2000 3/8” Cap Screws
|
PEUGEOT FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65252197 $641.10 |
106 4-Cylinder |
5.252/ 133mm |
1.915/ 49mm |
.940/ 24mm |
.767/ 19mm |
ARP 2000 Cap Screws
|
PONTIAC LE MANS/DAEWOO FORGED 4340
H-BEAM CONNECTING RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65110187 $665.55 |
1.6L GM 4-Cylinder |
5.110/ 130mm |
1.691/ 43mm |
.862/ 22mm |
.708/ 22mm |
ARP 2000 Cap Screws
|
SATURN FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65707197 $665.55 |
SATURN 1.9-116CID 4-Cylinder |
5.707/ 144mm |
1.691/ 18mm |
.966/ 25mm |
.767/ 19mm |
ARP 2000 Cap Screws
|
SUBARU FORGED 4340 H-BEAM CONNECTING
RODS |
|
PART NO. |
PART NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
2-5180-2047-842-905 |
65180905 $665.55 665.55 665.55 533.234 |
EJ20-EJ25 4-Cylinder |
5.180/ 144mm |
2.047/ 18mm |
.842/ 25mm |
.905/ 19mm |
ARP 2000 Cap Screws
|
TOYOTA FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
64645187 $673.46 |
1.3 TURBO JDM 3/8" 4-Cylinder |
4.645/ 118mm |
1.693/ 43mm |
.818/ 20mm |
.709/ 18mm |
|
65138709 $673.46 |
5EFTE 4-Cylinder |
5.138/ 130mm |
1.693/ 43mm |
.818/ 20mm |
.709/ 18mm |
|
65590218 $880.13 |
2JZGTE - V7 5/ 16" 6-Cylinder |
5.590/ 142mm |
2.047/ 52mm |
1.020/ 26mm |
.866/ 22mm |
|
65819281 $673.46 |
22R 3/8" 4-Cylinder |
5.819/ 147mm |
2.086/ 52mm |
1.090/ 28mm |
.866/ 22mm |
ARP 2000 Cap Screws
Page 79
|
VAUXHALL FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
6VAUX $683.03 |
2.0 4-Cylinder |
5.636/ 143mm |
1.927/ 49mm |
1.039/ 26mm |
.827/ 21mm |
ARP 2000 Cap Screws
|
VW SCIROCCO FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65670187 $673.46 |
1.8L, 1.8T (SCIROCCO) 4-Cylinder |
5.670/ 144mm |
1.880/ 48mm |
.981/ 25mm |
.787/ 20mm |
ARP 2000 Cap Screws
|
JETTA/GOLF FORGED 4340 H-BEAM CONNECTING
RODS |
PART
NO. |
Engine |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Big End
INCH/ MM |
Wrist Pin
INCH/ MM |
|
65670187S $840.87 |
I5 20V, 10V (JETTA/GOLF) 5-Cylinder |
5.670/ 144mm |
1.880/ 48mm |
.981/ 25mm |
.787/ 20mm |
|
66260197 $673.58 |
2.0L ABA (JETTA/GOLF) 4-Cylinder |
6.260/ 159mm |
1.880/ 48mm |
.981/ 25mm |
.787/ 20mm |
|
66260198 $673.58 |
2.0L ABA (JETTA/GOLF) 4-Cylinder |
6.260/ 159mm |
1.880/ 48mm |
.981/ 25mm |
.827/ 21mm |
ARP 2000 Cap Screws
*Small end tapered for factory pistons
ARP 2000 5/ 16 Cap Screws
|
SCAT VW AIR COOLED FORGED H-BEAM
CONNECTING RODS - CHEVY Journal |
PART
NO. |
PART NO. |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Wrist Pin
INCH/ MM |
|
102494-3 |
102494-3-8740 |
5.325/ 135mm |
2.000/ 51mm |
.866/ 22mm |
|
102514-3 |
102514-3-8740 |
5.500/ 139mm |
2.000/ 51mm |
.866/ 22mm |
|
102534-3 |
102534-3-8740 |
5.700/ 144mm |
2.000/ 51mm |
.866/ 22mm |
ARP 2000 3/8
Cap Screws |
ARP 8740 3/8
Cap Screws |
. |
|
SCAT VW AIR COOLED FORGED H-BEAM CONNECTING
RODS - VW Journal |
PART
NO. |
PART NO. |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Wrist Pin
INCH/ MM |
|
102502-3 |
102502-3-8740 |
5.394/ 137mm |
2.165/ 55mm |
.866/ 22mm |
|
102512-3 |
102512-3-8740 |
5.500/ 139mm |
2.165/ 55mm |
.866/ 22mm |
|
102532-3 |
102532-3-8740 |
5.700/ 144mm |
2.165/ 55mm |
.866/ 22mm |
ARP 2000 3/8
Cap Screws |
ARP 8740 3/8
Cap Screws |
. |
|
SCAT VW AIR COOLED FORGED H-BEAM
CONNECTING RODS - CHEVY Journal |
PART
NO. |
PART NO. |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Wrist Pin
INCH/ MM |
|
102494-2 |
102494-2-8740 |
5.325/ 135mm |
2.000/ 51mm |
.866/ 22mm |
|
102534-2 |
102534-2-8740 |
5.700/ 144mm |
2.000/ 51mm |
.866/ 22mm |
ARP 2000 5/ 16
Cap Screws |
ARP 8740 5/ 16
Cap Screws |
. |
|
SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - VW
Journal |
PART
NO. |
PART NO. |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Wrist Pin
INCH/ MM |
|
102512-2 |
102512-2-8740 |
5.500/ 139mm |
2.165/ 55mm |
.866/ 22mm |
ARP 2000 5/ 16
Cap Screws |
ARP 8740 5/ 16
Cap Screws |
. |
|
SCAT VW AIR COOLED FORGED I-BEAM
CONNECTING RODS - CHEVY Journal |
PART
NO. |
PART NO. |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Wrist Pin
INCH/ MM |
|
ICR5500-34 |
ICR5500-34-8740 |
5.500/ 139mm |
2.000/ 51mm |
.866/ 22mm |
ARP 2000 3/8
Cap Screws |
ARP 8740 3/8
Cap Screws |
. |
|
SCAT VW AIR COOLED FORGED I-BEAM CONNECTING
RODS - VW Journal |
PART
NO. |
PART NO. |
Rod Leng.
INCH/ MM |
CRANK
INCH/ MM |
Wrist Pin
INCH/ MM |
|
ICR5394-3 $194.94 |
ICR5394-3-8740 |
5.394/ 137mm |
2.165/ 55mm |
.866/ 22mm |
|
ICR5500-3 |
ICR5500-3-8740 |
5.500/ 139mm |
2.165/ 55mm |
.866/ 22mm |
ARP 2000 3/8
Cap Screws |
ARP 8740 3/8
Cap Screws |
. |
Top of Page
HOME
