MASTER ENGINE REBUILD KITS & PARTS

Home






Page 5
SCAT CONNECTING RODS
ALL SCAT CONNECTING RODS BALANCED
INTO SETS, READY TO INSTALL

STOCK REPLACEMENT CONNECTING ROD

• Single rib cap design for added strength andbearing support
• Lightweight I-Beam design for increased strength and quicker RPMs
• Press pin or bushed
• Comes standard with 3/8” ARP Wave-Loc Bolts


PRO STOCK I-BEAM CONNECTING ROD

• Press pin or bushed
• Single rib cap design for added strength and bearing support
• Lightweight I-Beam design for increased strength and quicker RPMs
• Special hollow doweled cap for accurate cap-to-rod beam alignment
• IMCA & Wissota sanctioned
• Comes standard 3/8” (small block) 7/16” (big block) ARP cap scew bolts
• ARP2000 bolt upgrade available

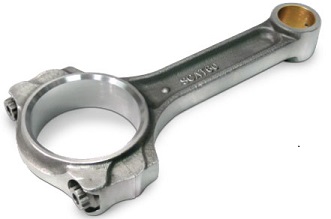

PRO SERIES I-BEAM - STROKER CLEARANCED
CONNECTING ROD

• Strongest I-Beam available
• Single rib cap design for added strength and bearing support
• Polished and shot peened beams to eliminate stress risers
• Special hollow-doweled cap for accurate cap-to-rod beam alignment
• Comes standard 7/16” ARP cap screw bolts
• ARP2000 bolt upgrade available


CHEVY / FORD / CHRYSLER JEEP / HOLDEN
Page 6

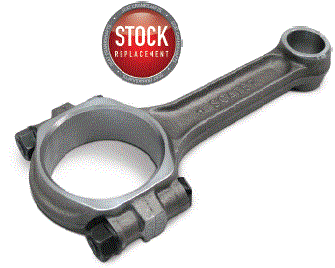

STOCK REPLACEMENT FORGED I-BEAM

FEATURES & BENEFITS
• Single rib cap design for added
strength and bearing support
• Press pin or bushed
• Lightweight I-Beam design for
increased strength and quicker RPMs
• Comes standard with 3/8” ARP Wave-
Loc Bolts
SHORT NO. Desc. Rod Length Crank Pin Wrist PIN B.E. Width
CHEVY SMALL BLOCK WITH ARP 8740 3/8" WAVE-LOC BOLTS
35700P $539.89 Pressed 5.700 2.100 .927 .940
35700 $568.28 Bushed 5.700 2.100 .927 .940
36000 $568.28 Bushed 6.000 2.100 .927 .940
36000P $539.89 Pressed 6.000 2.100 .927 .940
CHEVY BIG BLOCK WITH GM FACTORY REPLACEMENT PERFORMANCE BOLTS
310198922 $538.57 Pressed With 7/16" Bolts 6.135 2.200 .990 .992
310212764 $538.57 Pressed With 3/8" Bolts 6.135 2.200 .990 .992



CHEVY / FORD / CHRYSLER JEEP / HOLDEN
Page 7

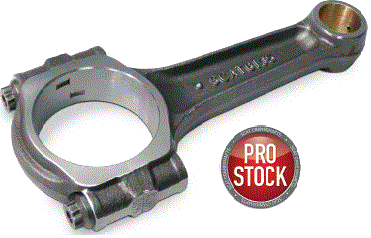

PRO STOCK 4340 FORGED I-BEAMS
CONNECTING RODS

FEATURES & BENEFITS
• Press pin or bushed
• Single rib cap design for added strength and bearing support
• Lightweight I-Beam design for increased
strength and quicker RPMs
• Special hollow doweled cap for accurate
cap-to-rod beam alignment
• IMCA & Wissota sanctioned
• Comes standard 3/8” (small block) 7/16”
(big block) ARP Cap Screw Bolts
• ARP2000 bolt upgrade available
SHORT NO. Desc. SHORT NO. Rod Length Crank Pin Wrist PIN B.E. Width
CHEVY SMALL BLOCK WITH ARP 3/8" CAP SCREW BOLTS
25700P $552.10 Pressed 25700PA $661.41 5.700 2.100 .927 .940
2570020P $550.80 Pressed 2570020PA $661.41 5.700 2.000 .927 .940
25700 $581.78 Bushed 25700A $689.80 5.700 2.100 .927 .940
2570020 $581.78 Bushed 2570020A $692.44 5.700 2.000 .927 .940
26000P $550.80 Pressed 26000PA $661.41 6.000 2.100 .927 .940
26000 $581.78 Bushed 26000A $692.44 6.000 2.100 .927 .940
2600020 $581.78 Bushed 2600020A $707.31 6.000 2.000 .927 .940
ARP 8740 3/8" CAP SCREWS ARP 2000 3/8" CAP SCREWS
.
CHEVY BIG BLOCK WITH ARP 7/16" CAP SCREW BOLTS
26135P $580.34 Pressed 26135PA $727.52 6.135 2.200 .990 .992
26135 $607.42 Bushed 26135A $753.21 6.135 2.200 .990 .992
26385P $580.34 Pressed 26385PA $727.52 6.385 2.200 .990 .992
26385 $607.42 Bushed 26385A $753.21 6.385 2.200 .990 .992
ARP 8740 7/16" CAP SCREWS ARP 2000 7/16" CAP SCREWS
.
FORD SMALL BLOCK WITH ARP 3/8" CAP SCREW BOLTS
25090P $562.84 Pressed, 302 25090PA $661.41 5.090 2.123 .912 .830
25090 $580.34 Bushed, 302 25090A $689.80 5.090 2.123 .912 .830
25325927 $581.78 Bushed, 302 25325927A $692.44 5.325 2.123 .927 .830
25400912 $581.78 Bushed, 302 25400912A $707.31 5.400 2.123 .912 .830
25400927 $581.78 Bushed, 302 25400927A $707.31 5.400 2.123 .927 .830
25955912 $581.78 Bushed, 351 25955912A $692.44 5.955 2.311 .912 .830
ARP 8740 3/8" CAP SCREWS ARP 2000 3/8" CAP SCREWS
.
CHRYSLER JEEP WITH ARP 3/8" CAP SCREW BOLTS
2406125P $530.47 Pressed 2406125PA $688.32 6.125 2.095 .931 1.065
ARP 8740 3/8" CAP SCREWS ARP 2000 3/8" CAP SCREWS
.
HOLDEN WITH ARP 3/8" CAP SCREW BOLTS
2570012 $579.02 Bushed 2570012A $731.58 5.700 2.124 .927 .880
ARP 8740 3/8" CAP SCREWS ARP 2000 3/8" CAP SCREWS


CHEVY / LS / CHRYSLER / HOLDEN
Page 8

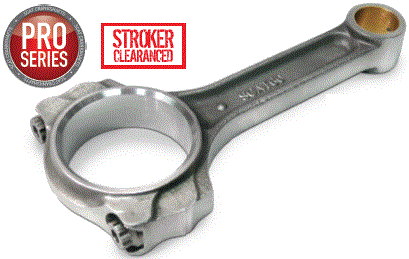

PREMIUM PRO SERIES 4340 FORGED I-BEAMS
CONNECTING RODS

FEATURES & BENEFITS
• Strongest I-Beam available
• Single rib cap design for added strength and
bearing support
• Polished and shot peened beams to eliminate
stress risers
• Special hollow doweled cap for accurate cap-torod
beam alignment
• Comes standard 7/16” ARP Cap Screw Bolts
• ARP2000 bolt upgrade available
SHORT NO. Desc. SHORT NO. Rod Length Crank Pin Wrist PIN B.E. Width Wht.*
CHEVY SMALL BLOCK WITH ARP 7/16" CAP SCREW BOLTS STROKER CLEARANCED
25700716 $689.80 Bushed 25700716A $778.80 5.700 2.100 .927 .940 590
26000716 $689.80 Bushed 26000716A $778.80 6.000 2.100 .927 .940 605
26000866 $689.80 Bushed 26000866A $778.80 6.000 2.100 .866 .940 605
26001716 $689.80 Bushed 26001716A $778.80 6.000 2.000 .927 .940 605
26125716 $689.80 Bushed 26125716A $778.80 6.125 2.100 .927 .940 610
26126716 $689.80 Bushed 26126716A $778.80 6.125 2.000 .927 .940 610
26200716 $689.80 Bushed 26200716A $778.80 6.200 2.100 .927 .940 620
ARP 8740 7/16" CAP SCREWS ARP 2000 7/16" CAP SCREWS
.
CHEVY BIG BLOCK WITH ARP 7/16" CAP SCREW BOLTS STROKER CLEARANCED
26135716 $699.22 Bushed 26135716A $788.33 6.135 2.200 .990 .992 780
26385716 $699.22 Bushed 26385716A $788.33 6.385 2.200 .990 .992 785
26700716 $699.22 Bushed 26700716A $788.33 6.700 2.200 .990 .992 810
26800716 $699.22 Bushed 26800716A $788.33 6.800 2.200 .990 .992 820
ARP 8740 7/16" CAP SCREWS ARP 2000 7/16" CAP SCREWS
.
CHEVY LS1 WITH ARP 7/16" CAP SCREW BOLTS STROKER CLEARANCED
26100927 $689.80 Bushed 26100927A $778.80 6.100 2.100 .927 .940 595
26100944 $689.80 Bushed 26100944A $778.80 6.100 2.100 .944 .940 NEW
26100944P $689.80 Pressed 26100944PA $778.80 6.100 2.100 .944 .940 585
ARP 8740 7/16" CAP SCREWS ARP 2000 7/16" CAP SCREWS
.
FORD SMALL BLOCK 302 WITH ARP 7/16" CAP SCREW BOLTS STROKER CLEARANCED
26540716 $674.95 Bushed 26540716A $763.94 5.400 2.123 .927 .830 535
ARP 8740 7/16" CAP SCREWS ARP 2000 7/16" CAP SCREWS
.
CHRYSLER 340/360 WITH ARP 7/16" CAP SCREW BOLTS STROKER CLEARANCED
26123 $689.80 Bushed 26123A $778.80 6.123 2.124 .984 .925 585
ARP 8740 7/16" CAP SCREWS ARP 2000 7/16" CAP SCREWS
.
CHRYSLER MODERN HEMI WITH ARP 7/16" CAP SCREW BOLTS STROKER CLEARANCED
262402P $689.80 Pressed 262402PA $778.80 6.240 2.126 .943 .930 695
ARP 8740 7/16" CAP SCREWS ARP 2000 7/16" CAP SCREWS
(*) Weights (grams) are approximate, actuals may vary.
